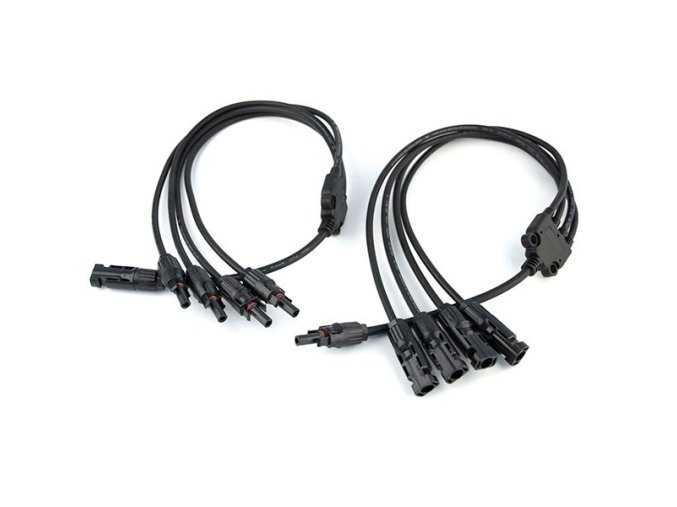

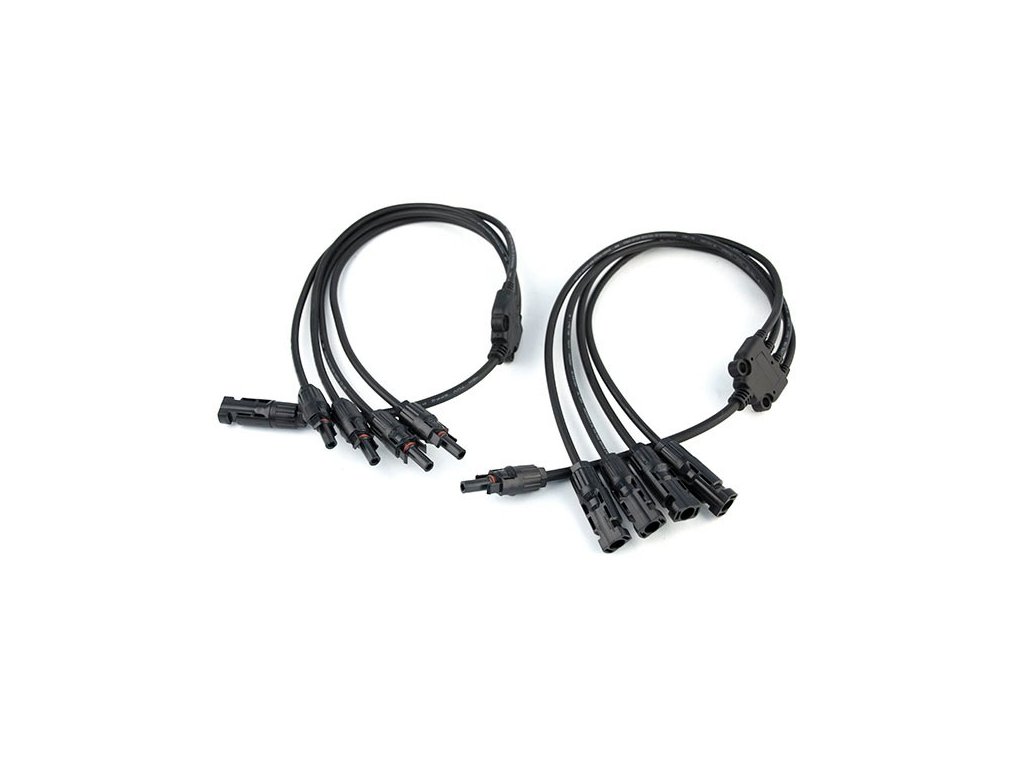

Solární rozbočovací kabely Sunpulse SMC4-4Y (1pár) k fotovoltaickým panelům (MC4 T 1 na 4)

Neohodnoceno



These are Y Type(1 to 4) MC4 Style Branch Connector Cables which are approved by CE, TUV. This Y Style MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications.

Dostupnost Skladem
730 Kč
Kód produktu 4S000227
Značka Sunpulse
Kategorie Solární příslušenství
Záruka 2 roky


These are Y Type(1 to 4) MC4 Style Branch Connector Cables which are approved by CE, TUV. This Y Style MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications.

Techincal Data:
main cable specification:6mm2(AWG10)
-Branch cable specification:4mm2(AWG12)
-Rated Current: 30A
-Rated voltage: 1000VDC
-Contact resistance: ≤0.2mm?
-Waterproof degree:IP67
-Flame class: UL94-VO
-Safety Class: ?
-Withdrawal force: ≥50N
-Insertion force: ≤50N
-Insulation material: PPO+PA
-Connecting system: crimping connection
-Temperature range: -40 ? ~ +90 ?
-Cable length: 74.5mm


Details :
These are Y Type(1 to 4) MC4 Style Branch Connector Cables which are approved by CE, TUV. This Y Style MC4 compatible Solar Cable Connector Set is a perfect solution to parallel connect multiple panels together in a solar field, and is typically used in parallel applications.

Feature:
- Pair of Y Type(1 to 4) MC4 Solar Panel Cable Connectors:1 male to 4 female (M/FFFF) and 1 female to 4 male(F/MMMM) , you will get 4 pairs in the package.
-Compatible Mc4
-Double seal rings for better waterproof effect
-Compatible with PV cables with different insulation diameters
-It can be used in harsh environment
-With excellent aging resistance and UV endurance
-Created seal, design of dust proof
-Load capability with big current and high voltage
-Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
-Strong pulling force capability
-Resistance of extra high & low temperature and fireproof
-Lower contact resistance
